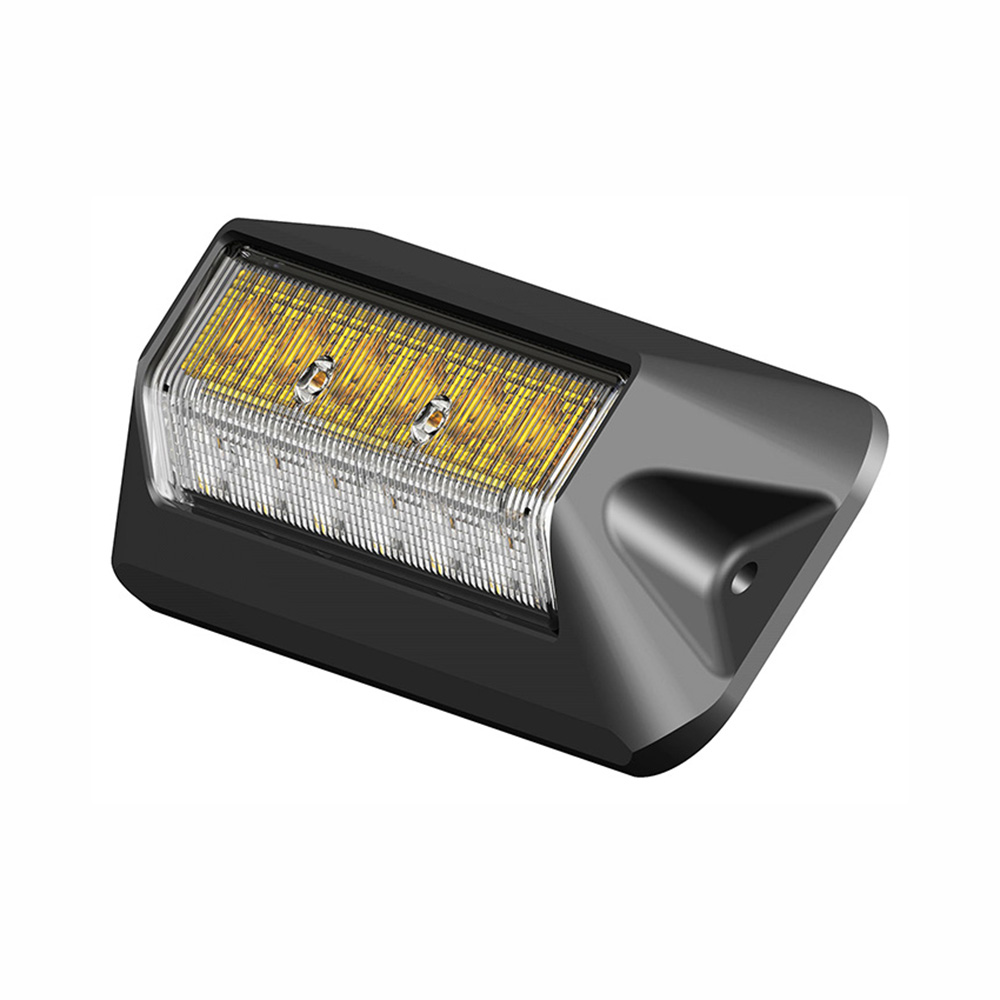

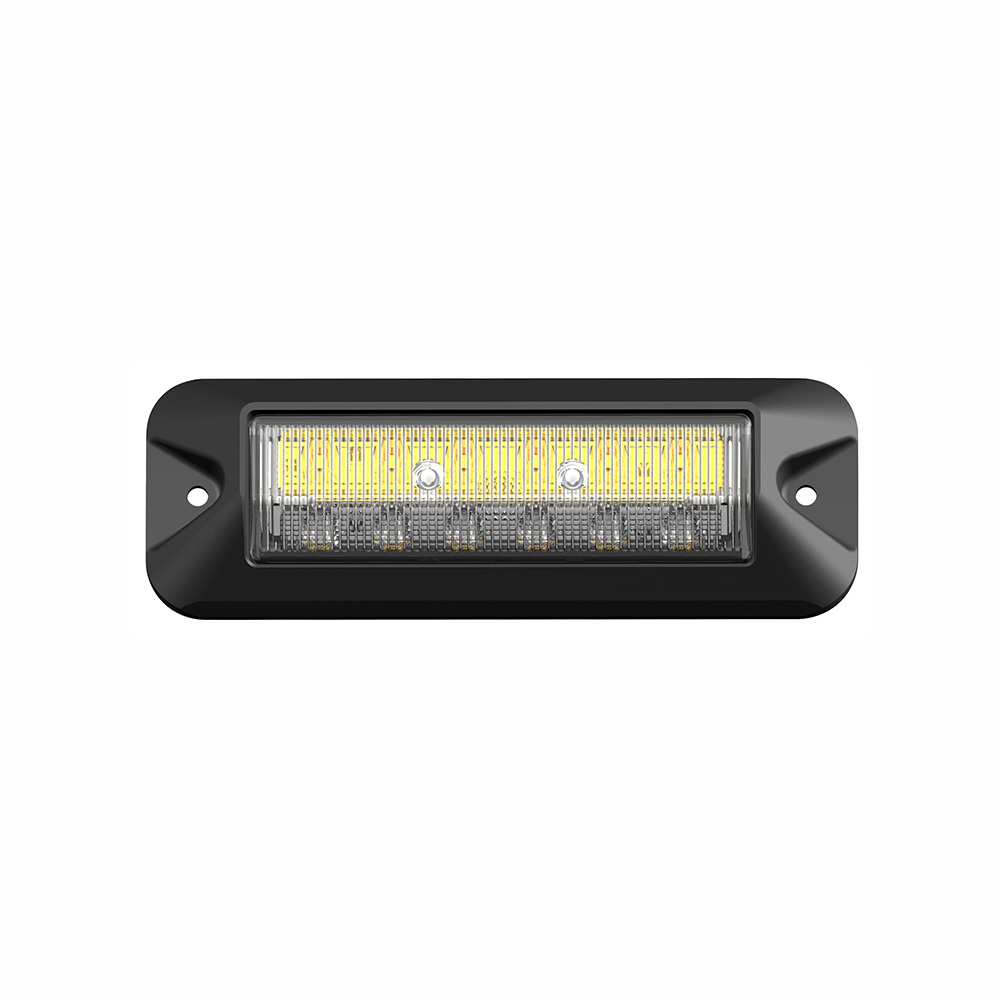

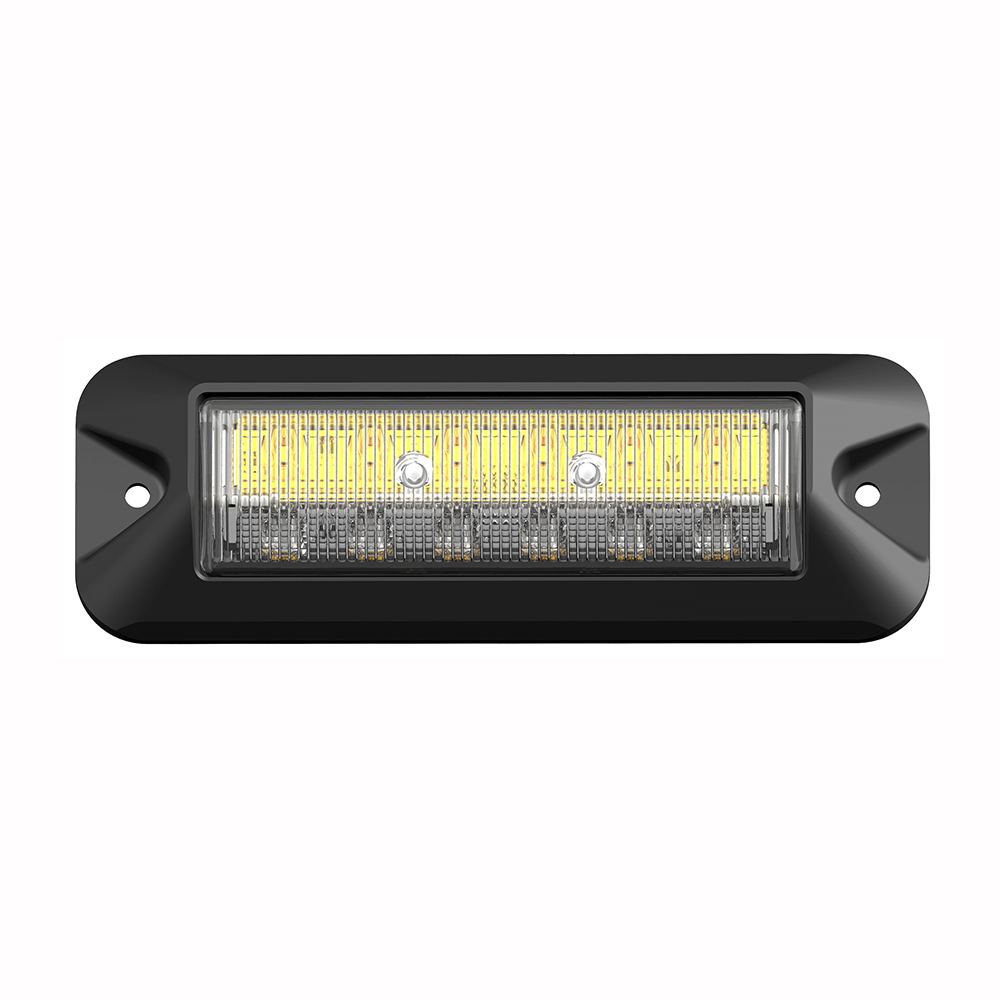

• Surface Mount Scene Light with Strobe function incorporated
• (6) hi-power White LEDs to shine downwards with bean angle no less than 90° to illuminate a desired wide area, plus (6) Amber LEDs on top to function as Emergency Strobing/Warning light or a steady-on Marker light; ideal for truck, trailer, and specialty vehicles
• Die cast aluminum housing, black powder coated finish
• PC lens with engineered lens optics
• LED circuitry integrated with constant-current driver
• LED & PC boards completely sealed by epoxy to ensure its water proof feature, IP67 rated
• Sleeved wires with stripped wire ends, foam gasket and SS mounting screws included
• Single strobing pattern, compliant with SAE J595, Class I; Lens marking: P2 P3 W-1
• Rated for 10-30V multi-voltage operation range
|
Part No. |
Description |
Light Color |
LED Count |
LED Type |
CCT |
Input Voltage |
Current Draw at 13.8V |
|
530006W |
Scene Light Only |
White |
6 |
SMD |
6000K |
10~30 V |
1.5 A |
|
530012AW |
Scene Light with Strobe |
Amber/White |
6+6 |
SMD |
6000K |
10~30 V |
0.7 A+1.5 A |
